嘉瑞藥機
創新無國界,嘉瑞致健康
ENGLISH ENGLISH

嘉瑞滅菌柜滅菌柜專用附件滅菌柜部分配件

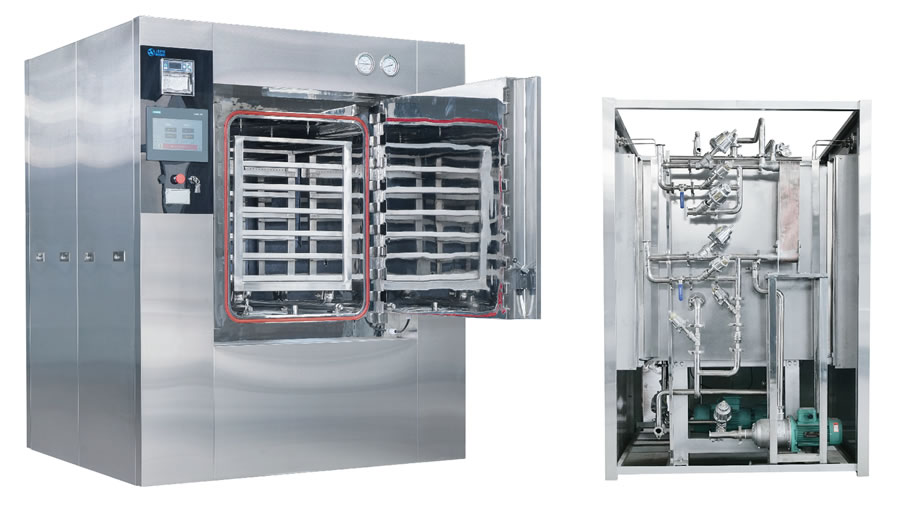

水浴式安瓿檢漏滅菌柜

Water Bath Ampule Leak Sterilizer

水浴式安瓿檢漏滅菌柜

產品概述

Product Overview

該系列水浴式滅菌柜利用過熱循環水作為滅菌加熱載體,對物品進行水淋式滅菌操作。在整個工作過程中,過熱水運 行于一個相對封閉的循環系統。該設備具有溫度均勻性好、溫度調控范圍寬(60-134℃)等一系列優點,并且有效防止工作 過程中的二次污染。該設備能廣泛應用于制藥行業對玻璃瓶裝、安瓿瓶裝、塑料瓶裝、塑料軟袋等液體進行高、低溫滅菌 操作,同時也適合用于食品行業對各種密封包裝、飲用液、罐頭食品進行高低溫滅菌操作。
本機可選用計算機進行全過程監控。各種參數能進行修改,實時記錄及打印輸出,極大的提高了整機的可靠性和智能 化,使其能更好地適合于現代企業自動化生產的需要。
This series of water bath sterilization cabinet uses superheated circulating water as sterilization heating carrier to carry out water spray sterilization operation on items. During the entire working process, the superheated water runs in a relatively closed circulation system. The equipment has a series of advantages such as good temperature uniformity, wide temperature control range (60-134℃), and effectively prevent secondary pollution in the working process. The equipment can be widely used in the pharmaceutical industry for high and low temperature sterilization of glass bottles, ampoules, plastic bottles, plastic soft bags and other liquids, but also suitable for the food industry for various sealed packaging, drinking liquid, canned food for high and low temperature steriliza- tion operation. The machine can choose the computer to monitor the whole process. Various parameters can be modified, recorded and printed out in real time, greatly improving the reliability and intelligence of the whole machine, so that it can be better suited to the needs of modern enterprise automated production.

主要技術參數

Main Technical Parameters

設計壓力
Design?Pressure
0.3MPa 蒸汽源壓力
Steam Source?Pressure
0.4-0.6MPa
設計溫度
Design Temperature
144?℃ 水源壓力
Water Source?Pressure
0.1?-0.3MPa
工作溫度
Working Temperature
60-134?℃ 壓縮空氣壓力
Compressed?Air Pressure
0.5-0.7MPa
熱均勻度???
Heat?Equilibrium
≤±1?℃ 純水
Soft Water Pressure
0.1-0.3MPa

結構 ·性能 ·特點

Stucture&Capability&Characteristics

●主體內膽為優質304不銹鋼,自動焊接一次成形。全不銹鋼拉絲板裝飾外罩。具有標準GMP驗證接口,方便用戶隨時進 行設備驗證。
●控制系統采用德國西門子PLC,觸摸屏(可選配計算機控制),微型打印機系統??刂葡到y(tǒng)穩定,控制溫度精確。并具有 完善的數據記錄,打印,保存。
●管路系統采用美國ASCO氣動閥和納西姆真空泵等最優化配置。
●設備可選配自動進出柜系統,減輕工人的勞動強度。
● The chamber of the main body is high quality 304 stainless steel, which is automatically welded and formed once . All stainless steel wire-brushed panels trim the outer cover. With standard GMP authentication interface, it is convenient for users to verify equipment at any time.
● Control system using Germany Siemens PLC, touch screen (optional computer control), micro printer system. The control system is stable and the temperature is accurate. And it has perfect data recording, printing, saving functions.
● The piping system adopts the optimal configuration of ASCO pneu- matic valve and Nassim vacuum pump.
● The equipment can be optional automatic access cabinet system to

水浴式安瓿檢漏滅菌柜

技術參數

Technical Parameter

型號?
Model
內室尺寸??
Chamber Size?LxWxH(mm)
外型尺寸
Overall?Dimensions
LxWxH(mm)
蒸汽耗量
Steam Consumption
(kg/cycle)
水耗量
Water Consumption
(kg/cycle)
功率????
Power(kw)
重量
Weight(kg)
JR.SG-0.6 1050x680x850 1330x1650x1920 35 500 2.5 1200
JR.SG-1.0 1250x750x1100 1530x1900x2000 45 600 4.5 1500
JR.SG-1.2 1500x750x1100 1780x1900x2000 50 800 4.5 1700
JR.SG-1.5 1820x750x1100 2100x1900x2000 60 1000 4.5 1900
JR.SG-1.8 2200x750x1100 2480x1900x2000 65 1200 4.5 2100
JR.SG-2.0 2450x750x1100 2730x1900x2000 70 1300 4.5 2300
JR.SG-2.5 1700x1000x1500 2050x2200x2200 80 1500 5.5 2800
JR.SG-3.0 2000x1000x1500 2350x2200x2200 100 1800 5.5 3200
JR.SG-4.0 2700x1000x1500 3050x2200x2200 120 2200 6.5 3800
JR.SG-5.0 3400x1000x1500 3750x2200x2200 150 2500 7.5 4500
JR.SG-6.0 4000x1000x1500 4350x2200x2200 180 2800 7.5 5200
